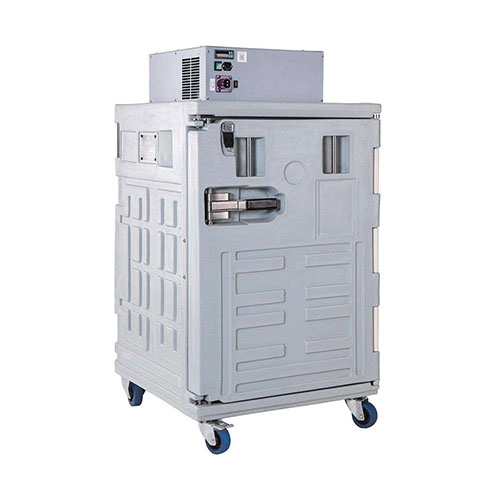

Refrigerated container for the transport of chilled and frozen products at a controlled temperature

  • Available in versions:

o AF: temperature adjustment range: from -18°C to +10°C;

o AFH: with heating kit and temperature adjustment range: from -18°C to +40°.

  • Insulation offered by container walls (particularly thick) ensures that the temperature maintenance is guaranteed with a minimum number of ignitions of the cooling unit; this contributes limiting energy consumption.
  • Available with static cooling unit, which ensures reduced electrical consumption, or ventilated, which ensures a greater speed of achievement and temperature uniformity inside the container.
  • Cooling unit is triggered when external temperature is higher than the temperature set with the programmable digital thermostat. This allows to maintain a constant temperature even in case of very high external temperatures.
  • In the AFH versions, the heating unit is triggered when external temperature is lower than the temperature set with the programmable digital thermostat. This allows to maintain a constant temperature even in case of very low external temperatures.
  • Total compliance with the cold chain at all stages of transport.
  • It can be transported using conventional vehicles: it allows to simultaneously transport chilled, frozen and ambient temperature products using a single non-insulated vehicle.
  • Equipped with a low consumption fridge unit.
  • It can be powered at 230Vac, using normal mains power.
  • It can be powered at 12Vdc, depending on the model, directly or by inverter, it can be connected to the battery (or auxiliary battery) of the vehicle.
  • Manufactured using the rotational moulding technology: mono-block container and door (free of sharp edges, joints and welds).
  • Fully recyclable at the end of the operating life.

The price is valid for 1 piece of product code K370AF. Please contact us for the price for other product codes or in case of an inquiry for several pieces

370 AF Front opening versions
Cooling unit on back, static, on castors 0°C +10°C Code: K370AFDSDYM1
Cooling unit on back, ventilated, on castors 0°C +10°C Code: K370AFDVDYM1
Cooling unit on top, static, on castors 0°C +10°C Code: K370AFTSDYM1
Cooling unit on top, ventilated, on castors 0°C +10°C Code: K370AFTVDYM1
Cooling unit on back, ventilated, on castors -18°C +10°C Code: K370AFDVCYM1
Cooling unit on top, ventilated, on castors -18°C +10°C Code: K370AFTVCYM1
Cooling unit on back, static, on castors 0°C +40°C H Code: K370AFDSDZM1
Cooling unit on back, ventilated, on castors 0°C +40°C H Code: K370AFDVDZM1
Cooling unit on top, static, on castors 0°C +40°C H Code: K370AFTSDZM1
Cooling unit on top, ventilated, on castors 0°C +40°C H Code: K370AFTVDZM1
Cooling unit on back, ventilated, on castors -18°C +40°C H Code: K370AFDVCZM1
Cooling unit on top, ventilated, on castors -18°C +40°C H Code: K370AFTVCZM1
370 AF Information
Ext. Dimensions (mm): 800x840x1470h/1530h
Int. Dimensions (mm): 615×620/630x840h/940h
Capacity: 325l/370 l
Weight: 83/95  kg
